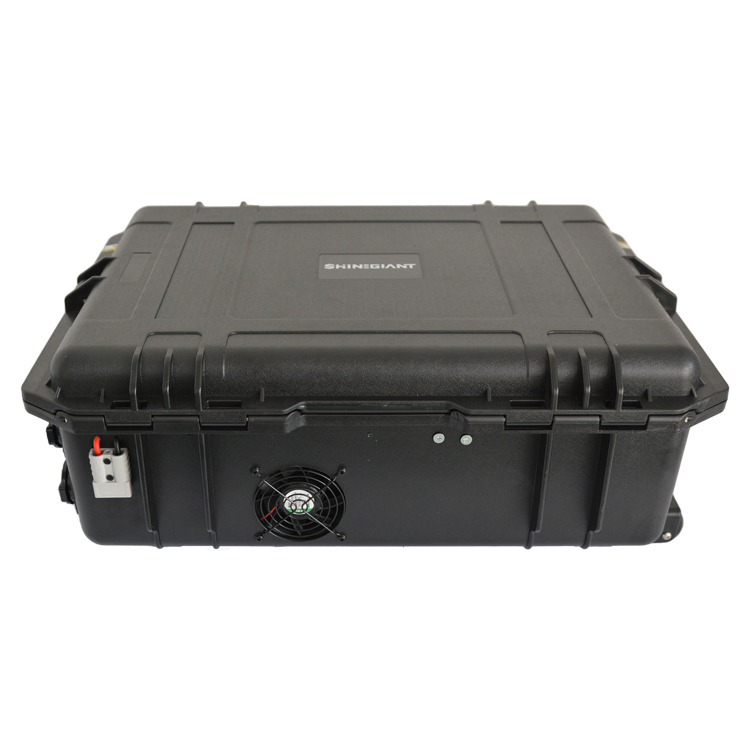

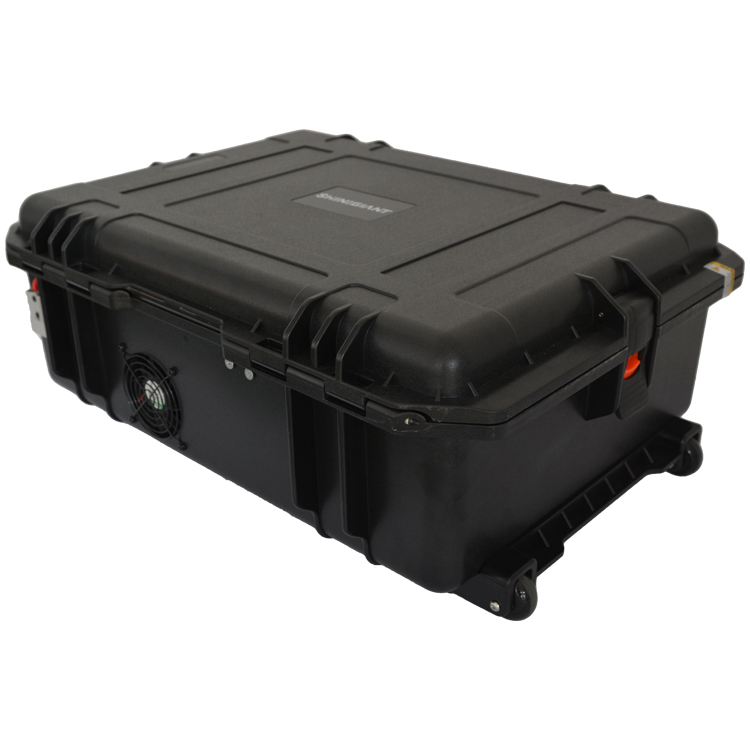

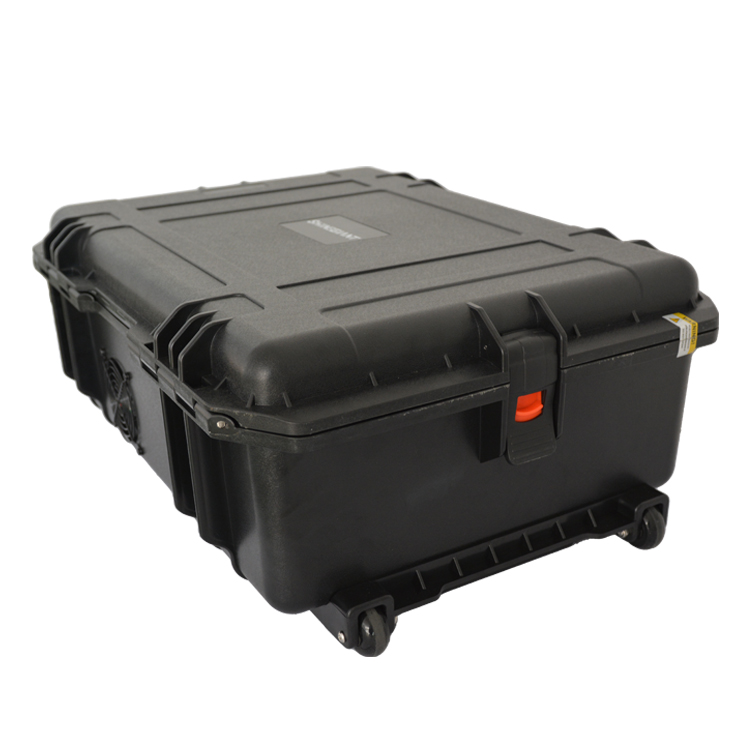

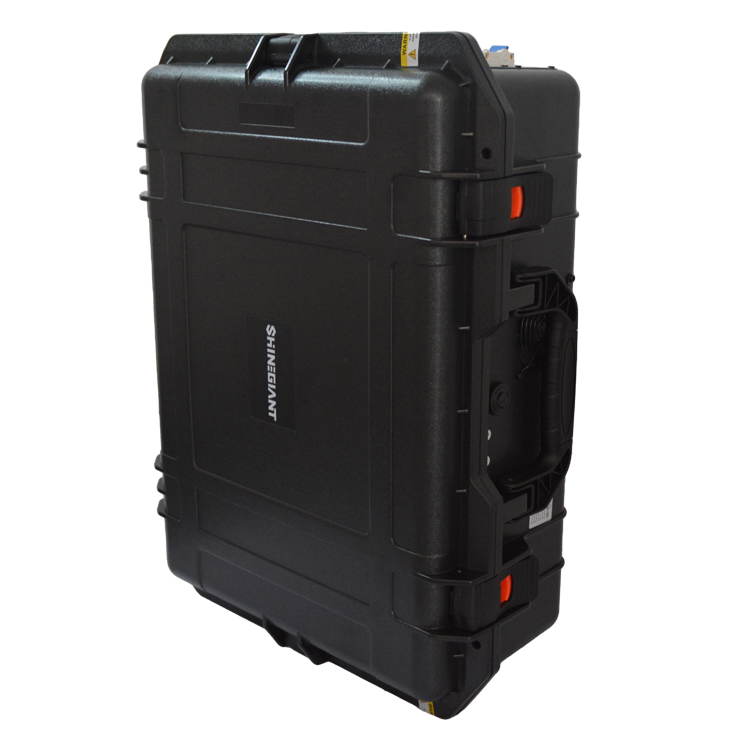

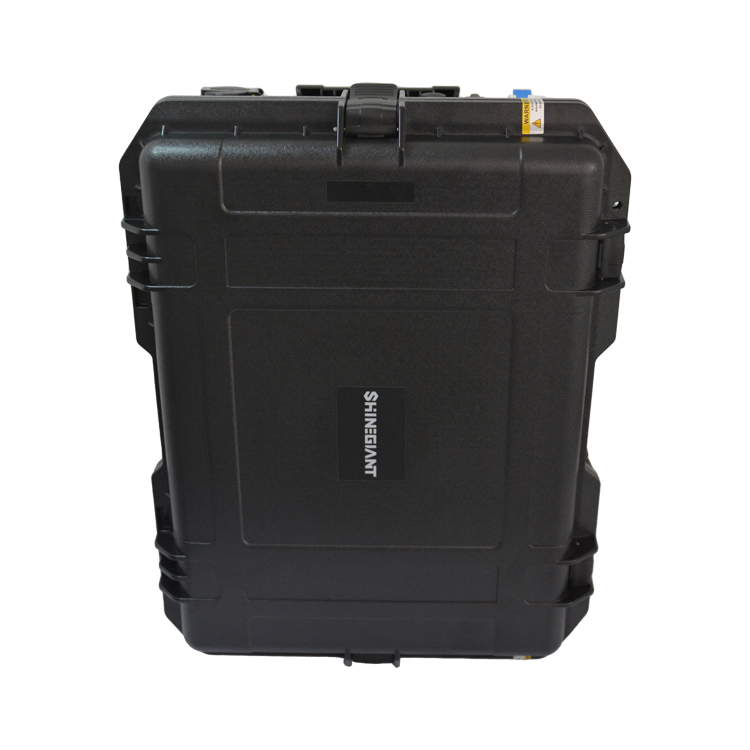

Shinegiant Portable power station SG5000
SG5000 series outdoor mobile power supply has three output modes of 5.12 kWh, large capacity, compatible with outdoor mobile phones with higher power consumption, and can provide enough high-current binding posts for RV household appliances and can also provide high-current binding posts for automobiles. Provide emergency rear movement of the car.
| Shinegiant Portable power station SG5000 | ||||||
| CHARGING | ||||||
| AC Adapter (Wall Socket) | Input Current | Single-phase three-wire | ||||
| Rated Voltage | 110VAC | |||||
| Rated Frequency | 60HZ | |||||
| Output Statics Input Methods | 58.4V15A | |||||
| Charging time: Around 6 h | ||||||
| Solar input/ Car cigarette lighter/other 12VDC source | ||||||
| DC Input | Rated Voltage | 12V | ||||
| Input Voltage Range | 9~18V | |||||
| Maximum Input Current | 10A | |||||
| DISCHARGING | ||||||
| AC Output | Output Method | Single-phase110VAC 5000W, 10A outlet*2, 16A outlet*1 | ||||
| Output Voltage | 110VAC±2% ((Inverter output) | |||||
| Output Frequency | 60Hz±0.5% | |||||
| Dynamic Voltage Transient | <7% | |||||
| Dynamic Transient Recovery Time | < 60ms | |||||
| Waveform | Pure sine wave | |||||
| Overload Capacity | 105 ~ 125% for 1 minute, 126 ~ 150% for 30 seconds, >150% 100ms | |||||

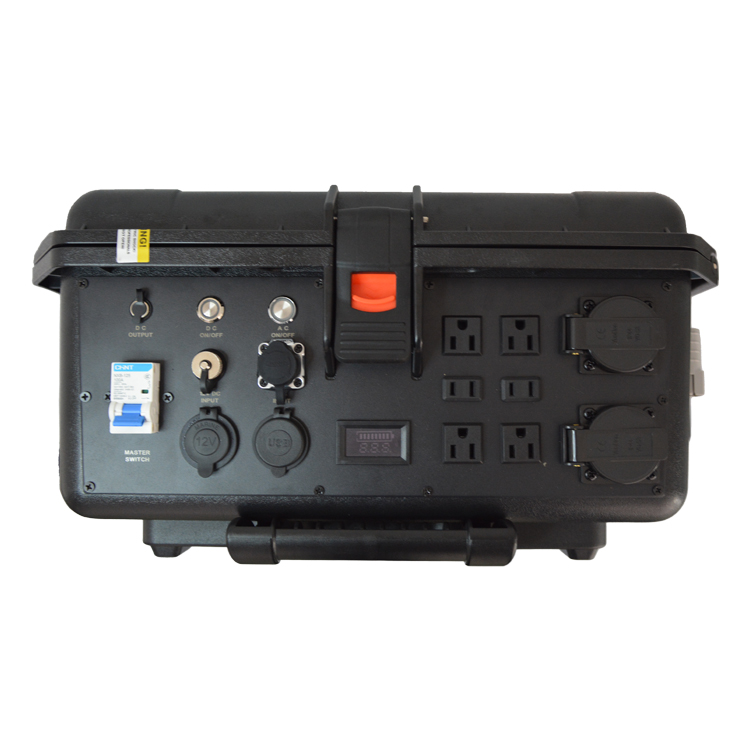

| Output Ports | 110VAC 10A Sockets*2, 110VAC 16A Sockets*1,Cigarette Lighter Port *1,USB5V2. 1A*2, DC5521*1 | |||||
| BATTERY | ||||||
| Battery | Battery Pack Voltage | 51.2V | ||||
| Battery Capacity | 5120Wh | |||||
| Backup Time (Full Load) | >60 min | |||||
| Overall Protection | Overcharge protection, Over discharge protection, Overload protection, Over-temperature protection, Over-voltage protection, Short circuit protection | |||||
| Net Weight (kg)(±0.5kg) | 54.7 | |||||
| Size (mm) | 690*510*250 | |||||
| Certification | CE, UN38.3 | |||||
| Warranty | 1 year | |||||
