BAT-S48200&SSA-5K
ShineGiant
Color: | |
---|---|
Inverter Size: | |
Battery Size: | |
Availability: | |
Quantity: | |
min order: 1 | |
High-performance Fast Charging Backup Sustainable Home LEP Energy Storage Battery

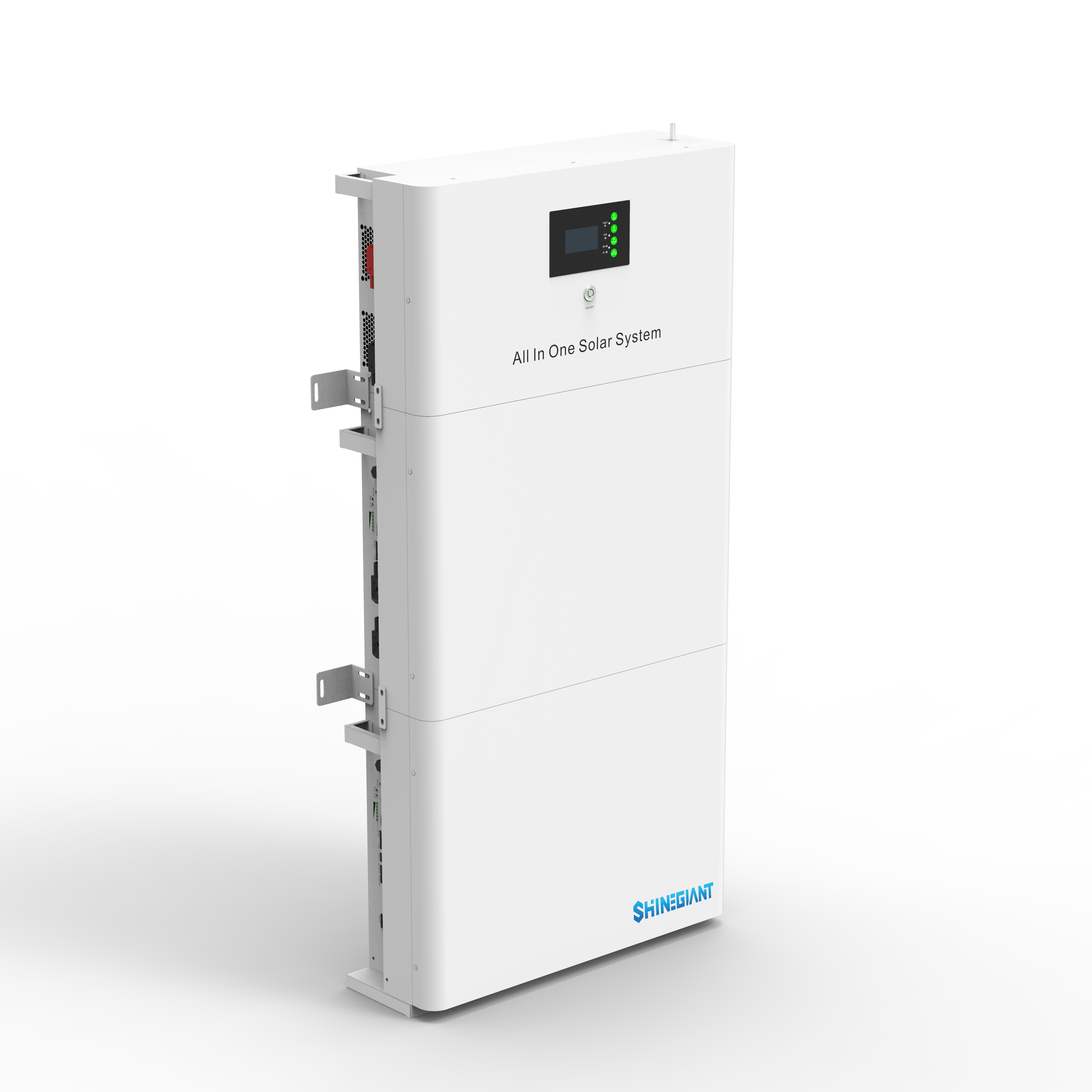

Introducing our stackable home energy storage system, the SSA 5K and S48100 5K. These combination products are designed to provide a reliable and efficient solution for your home's power needs.
During the day, the SSA 5K inverter harnesses the power of sunlight, converting it into electricity and storing it in the S48100 5K battery. This innovative system allows you to achieve energy independence, ensuring a continuous power supply for your household.
One notable feature of our stackable products is the ease of parallel connection between batteries. This means that you can easily combine multiple batteries to meet your specific power requirements. Whether you need a small or large power capacity, our stackable home energy storage system offers the flexibility to customize your energy needs.
With a professional tone, we assure you that our stackable home energy storage system is a reliable and efficient solution for your power needs. Invest in our product and experience the freedom of electricity at your fingertips.
High-performance Fast Charging Backup Sustainable Home LEP Energy Storage Battery
Introducing our stackable home energy storage system, the SSA 5K and S48100 5K. These combination products are designed to provide a reliable and efficient solution for your home's power needs.
During the day, the SSA 5K inverter harnesses the power of sunlight, converting it into electricity and storing it in the S48100 5K battery. This innovative system allows you to achieve energy independence, ensuring a continuous power supply for your household.
One notable feature of our stackable products is the ease of parallel connection between batteries. This means that you can easily combine multiple batteries to meet your specific power requirements. Whether you need a small or large power capacity, our stackable home energy storage system offers the flexibility to customize your energy needs.
With a professional tone, we assure you that our stackable home energy storage system is a reliable and efficient solution for your power needs. Invest in our product and experience the freedom of electricity at your fingertips.
BAT S48100
LEP Energy Storage Battery
Reliable:
• Outputs high-quality pure sine wave AC power
• Reliable output for long periods at rated power
User-Friendly:
• Industrial design with a modern aesthetic look
• Easy to install and simple to use
Intelligent:
• Exclusive Li-ion battery BMS dual activation
• Support for remote monitoring of operating
SSA 5000
Solar storage inverter
Efficiency:
• Advanced MPPT with up to 99.9%
• Multiple charge and discharge modes are available
Safety:
• 360 degrees of security from hardware tosoftware
• Multiple safety approvals available
All in one:
• Support for many types of batteries
• Supports Li-ion battery BMS communication
BAT S48100
LEP Energy Storage Battery
Reliable:
• Outputs high-quality pure sine wave AC power
• Reliable output for long periods at rated power
User-Friendly:
• Industrial design with a modern aesthetic look
• Easy to install and simple to use
Intelligent:
• Exclusive Li-ion battery BMS dual activation
• Support for remote monitoring of operating
SSA 5000
Solar storage inverter
Efficiency:
• Advanced MPPT with up to 99.9%
• Multiple charge and discharge modes are available
Safety:
• 360 degrees of security from hardware tosoftware
• Multiple safety approvals available
All in one:
• Support for many types of batteries
• Supports Li-ion battery BMS communication
BAT S48100 S48200 S48300 Batteries Product Parameters
MODEL | BAT S48100 BAT S48200 BAT S48300 |
Batteries materials | Lithium iron phosphate |
Series parallel mode (s series, P parallel) | 16S1P |
Rate voltage | 51.2V |
Rate capacity | 100Ah 200Ah 300Ah |
Size(mm) | 588*430*195(monomer) |
Weight | 48kg ( Battery pack ) 96kg( Battery pack ) 144kg( Battery pack ) |
Color | Optional |
Charging way | CC/CV |
Charging current | 0.2C(standard ) |
Maximum charging current | Max1C @25℃ |
Charge cut-off voltage | 58.4V |
Discharge way | CP/VP |
Discharge current | 1C |
Maximum discharge current | Max1C @25°℃ |
Discharge cut-off voltage | 44.8V |
Communication interface | RS485/RS232/CAN |
Charging operating temperature | charging:0~+509C |
Discharge operating temperature | discharge:-20~+55℃ |
Inverter | 3.5KW/5.5KW |
The quality assurance period | 60 months |
SSA 5000 Inverter Product Parameters
MODEL | SSA 5K |
Rated Power | 5000VA/5000W |
INPUT | |
Voltage | 230 VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
ACVoltage Regulation(Batt. Mode) | 230VAC+5% |
Surge Power | 10000VA |
Efficiency (Peak) | up to 93.5% |
Transfer Time | 10 ms (For Personal Computers);20 ms (For Home Appliances) |
Waveform | Pure sine wave |
BATTERY | |
Battery Voltage | 48VDC |
Floating Charge Voltage | 54VDC |
Overcharge Protection | 63VDC |
SOLAR CHARGER & AC CHARGER | |
Maximum PV Array OpenCircuit Voltage | 450VDC |
Maximum PV Array Power | 5000W |
MPPT Range @ OperatingVoltage | 120-430VD |
Maximum Solar Charge Current | 80A |
Maximum AC Charge Current | 80A |
Maximum Charge Current | 80A |
PHYSICAL | |
Net Weight (kgs) | 10 |
Communication interface | USB/RS232 |
ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Maximum AC Charge Current | -10'C to 50'C |
Maximum Charge Current | -15'C to 60'C |
BAT S48100 S48200 S48300 Batteries Product Parameters
MODEL | BAT S48100 BAT S48200 BAT S48300 |
Batteries materials | Lithium iron phosphate |
Series parallel mode (s series, P parallel) | 16S1P |
Rate voltage | 51.2V |
Rate capacity | 100Ah 200Ah 300Ah |
Size(mm) | 588*430*195(monomer) |
Weight | 48kg ( Battery pack ) 96kg( Battery pack ) 144kg( Battery pack ) |
Color | Optional |
Charging way | CC/CV |
Charging current | 0.2C(standard ) |
Maximum charging current | Max1C @25℃ |
Charge cut-off voltage | 58.4V |
Discharge way | CP/VP |
Discharge current | 1C |
Maximum discharge current | Max1C @25°℃ |
Discharge cut-off voltage | 44.8V |
Communication interface | RS485/RS232/CAN |
Charging operating temperature | charging:0~+509C |
Discharge operating temperature | discharge:-20~+55℃ |
Inverter | 3.5KW/5.5KW |
The quality assurance period | 60 months |
SSA 5000 Inverter Product Parameters
MODEL | SSA 5K |
Rated Power | 5000VA/5000W |
INPUT | |
Voltage | 230 VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
ACVoltage Regulation(Batt. Mode) | 230VAC+5% |
Surge Power | 10000VA |
Efficiency (Peak) | up to 93.5% |
Transfer Time | 10 ms (For Personal Computers);20 ms (For Home Appliances) |
Waveform | Pure sine wave |
BATTERY | |
Battery Voltage | 48VDC |
Floating Charge Voltage | 54VDC |
Overcharge Protection | 63VDC |
SOLAR CHARGER & AC CHARGER | |
Maximum PV Array OpenCircuit Voltage | 450VDC |
Maximum PV Array Power | 5000W |
MPPT Range @ OperatingVoltage | 120-430VD |
Maximum Solar Charge Current | 80A |
Maximum AC Charge Current | 80A |
Maximum Charge Current | 80A |
PHYSICAL | |
Net Weight (kgs) | 10 |
Communication interface | USB/RS232 |
ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Maximum AC Charge Current | -10'C to 50'C |
Maximum Charge Current | -15'C to 60'C |
