SG-100W
ShineGiant
Color: | |
---|---|
Size: | |
Availability: | |
Quantity: | |
min order: 1 | |

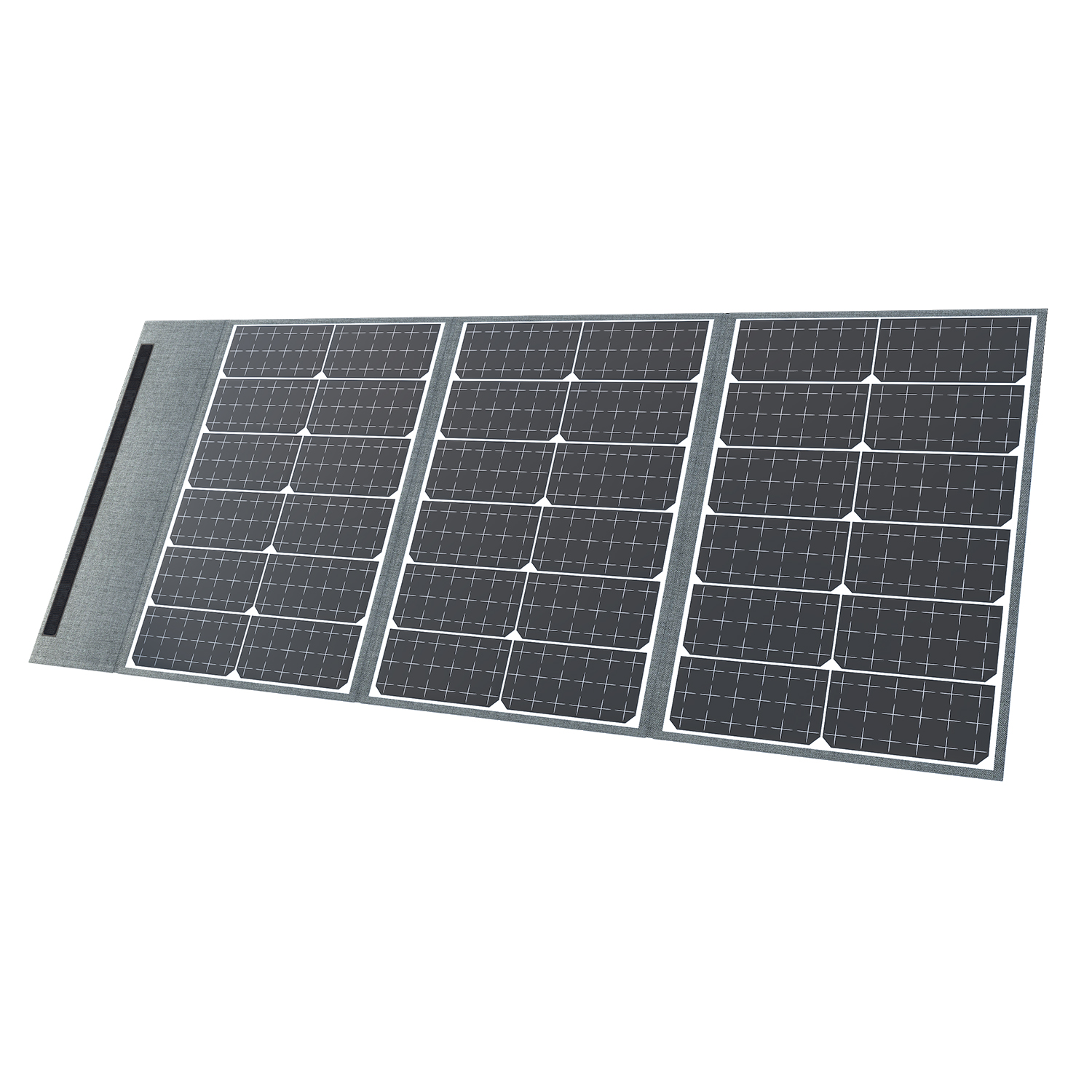

ShineGiant 100 Watt Power Solar PV Panel is an efficient and reliable solar power generator that converts solar energy into electricity, providing a clean, renewable energy solution for home and commercial users.
The 100 watt power solar PV panel utilizes advanced solar cell technology with high photovoltaic conversion efficiency. It consists of multiple solar cells that convert solar energy into DC electrical energy through the photovoltaic effect. These cells are usually made of high-purity silicon material with good light absorption and conductivity properties, and can operate stably under light conditions.
The 100 watt power solar PV panel has a compact design and light weight for easy installation and transportation. It can be flexibly installed on roofs, balconies, courtyards and other spaces to maximize the use of solar energy resources. It also has good weather resistance and corrosion resistance, and can operate stably for a long time under various harsh climatic conditions.
Home/Commercial Corrosion-resistance Lightweight 100W Monocrystalline Solar Panel for Roof/Balcony/Courtyard
ShineGiant 100 Watt Power Solar PV Panel is an efficient and reliable solar power generator that converts solar energy into electricity, providing a clean, renewable energy solution for home and commercial users.
The 100 watt power solar PV panel utilizes advanced solar cell technology with high photovoltaic conversion efficiency. It consists of multiple solar cells that convert solar energy into DC electrical energy through the photovoltaic effect. These cells are usually made of high-purity silicon material with good light absorption and conductivity properties, and can operate stably under light conditions.
The 100 watt power solar PV panel has a compact design and light weight for easy installation and transportation. It can be flexibly installed on roofs, balconies, courtyards and other spaces to maximize the use of solar energy resources. It also has good weather resistance and corrosion resistance, and can operate stably for a long time under various harsh climatic conditions.
Home/Commercial Corrosion-resistance Lightweight 100W Monocrystalline Solar Panel for Roof/Balcony/Courtyard
The main features of the portable solar panel:
1.23% high conversion efficiency
2.19.8V/10.1A faster output
3.4 MC-4 connector,compatible with most power station
4.40-50% lighter than other panel
5.IP65 waterproof and dustproof rating
6.30-60 ° adjustable bracket
7.Can be used in parallel
Waterproof & Durabel
Using a unique planar damascene process with a con ductive film tape,which can withstand high levels of thermal stress and is much stronger and durable comparing to other materials.
This folding solar panels come with an IP65 waterproof rating,making them highly resistant to water and dust ingress. This level of protection allows them to withstand light rain and sand, making them suitable for outdoor use in various weather conditions. The enhanced durability ensures a longer lifespan for the panels, providing a reliable and sustainable energy source.
The inclusion of MC4 cables makes these folding solar panels compatible with a wide range of power supplies available in the market.This compatibility ensures seamless integration with different energy storage systems,making it easier for us to set up and use these panels as part of their energy solutions.
1.MC-4 to Anderson; MC-4 to DC 5.5*2.1mm; MC-4 to DC 7.9*0.9/8mm; MC-4 to XT60 Cable
2.MC-4 to Anderson Cable for Explorer 1000, EF, and other solar generators.
3.MC-4 to DC 5.5*2.1mm Cable for 250W/350W/500W, Flash Fish 200W/300W, ROCKMAN 200/300W/500W, HP100 portable generator.
4.MC-4 to DC 7.9*0.9/8mm Adapter for Explorer 160/240/300/500/1000, Yeti 160/240/300, BALDR 200/330W, 521 Power Station,EB 240.
5.MC-4 to XT60 Cable for River/RIver 2/River Max/DELTA Mini/DELTA/DELTA Max, EB55, 757/767 Power Station.
Note Recharging time is affected by various factors such as sunlight intensity atdifferent times, power stations‘s input limits, temperature,angle and position
The main features of the portable solar panel:
1.23% high conversion efficiency
2.19.8V/10.1A faster output
3.4 MC-4 connector,compatible with most power station
4.40-50% lighter than other panel
5.IP65 waterproof and dustproof rating
6.30-60 ° adjustable bracket
7.Can be used in parallel
Waterproof & Durabel
Using a unique planar damascene process with a con ductive film tape,which can withstand high levels of thermal stress and is much stronger and durable comparing to other materials.
This folding solar panels come with an IP65 waterproof rating,making them highly resistant to water and dust ingress. This level of protection allows them to withstand light rain and sand, making them suitable for outdoor use in various weather conditions. The enhanced durability ensures a longer lifespan for the panels, providing a reliable and sustainable energy source.
The inclusion of MC4 cables makes these folding solar panels compatible with a wide range of power supplies available in the market.This compatibility ensures seamless integration with different energy storage systems,making it easier for us to set up and use these panels as part of their energy solutions.
1.MC-4 to Anderson; MC-4 to DC 5.5*2.1mm; MC-4 to DC 7.9*0.9/8mm; MC-4 to XT60 Cable
2.MC-4 to Anderson Cable for Explorer 1000, EF, and other solar generators.
3.MC-4 to DC 5.5*2.1mm Cable for 250W/350W/500W, Flash Fish 200W/300W, ROCKMAN 200/300W/500W, HP100 portable generator.
4.MC-4 to DC 7.9*0.9/8mm Adapter for Explorer 160/240/300/500/1000, Yeti 160/240/300, BALDR 200/330W, 521 Power Station,EB 240.
5.MC-4 to XT60 Cable for River/RIver 2/River Max/DELTA Mini/DELTA/DELTA Max, EB55, 757/767 Power Station.
Note Recharging time is affected by various factors such as sunlight intensity atdifferent times, power stations‘s input limits, temperature,angle and position
PRODUCT PARAMETERS—SG100W
Peak Power | 100W | Open size | 1330*545mm |
Open Circuit Voltage(Voc) | 23.8V | Folded size | 545*380mm |
Short Circuit Current(Isc) | 5.55A | Weight | 2.5±0.1Kg |
Maximum Power Voltage(Vmp) | 20.0V | DC output | 5A |
Maximum Power Current (Imp) | 5.05A | Type-C | PD3.0 60W 5V/9V/12V/15V/20V(3.0A)Note: If 20V protocol is required, the solarpanel voltage needs to be greater than 22V. |
Solar Energy Conversion Rate | 22%~23% | USB1 | Maximum 18W(5V3A/9V 2A/12V1.5A) |
Operating Temperature | -10℃~60℃ | USB2 | Maximum 18W (5V3A/9V 2A 12V 1.5A) |
