105kW/215kWh
ShineGiant
Color: | |
---|---|
Size: | |
Availability: | |
Quantity: | |

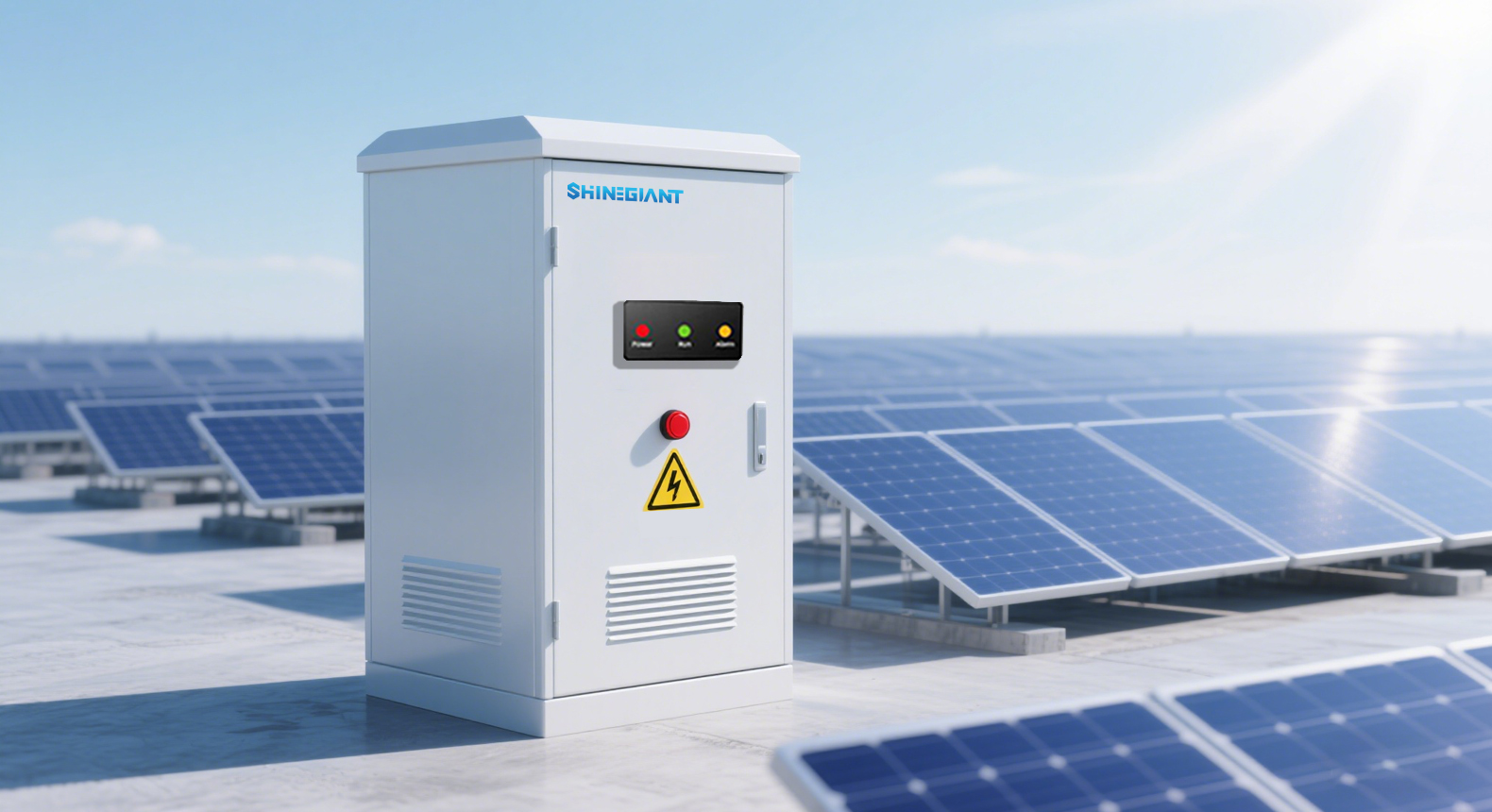

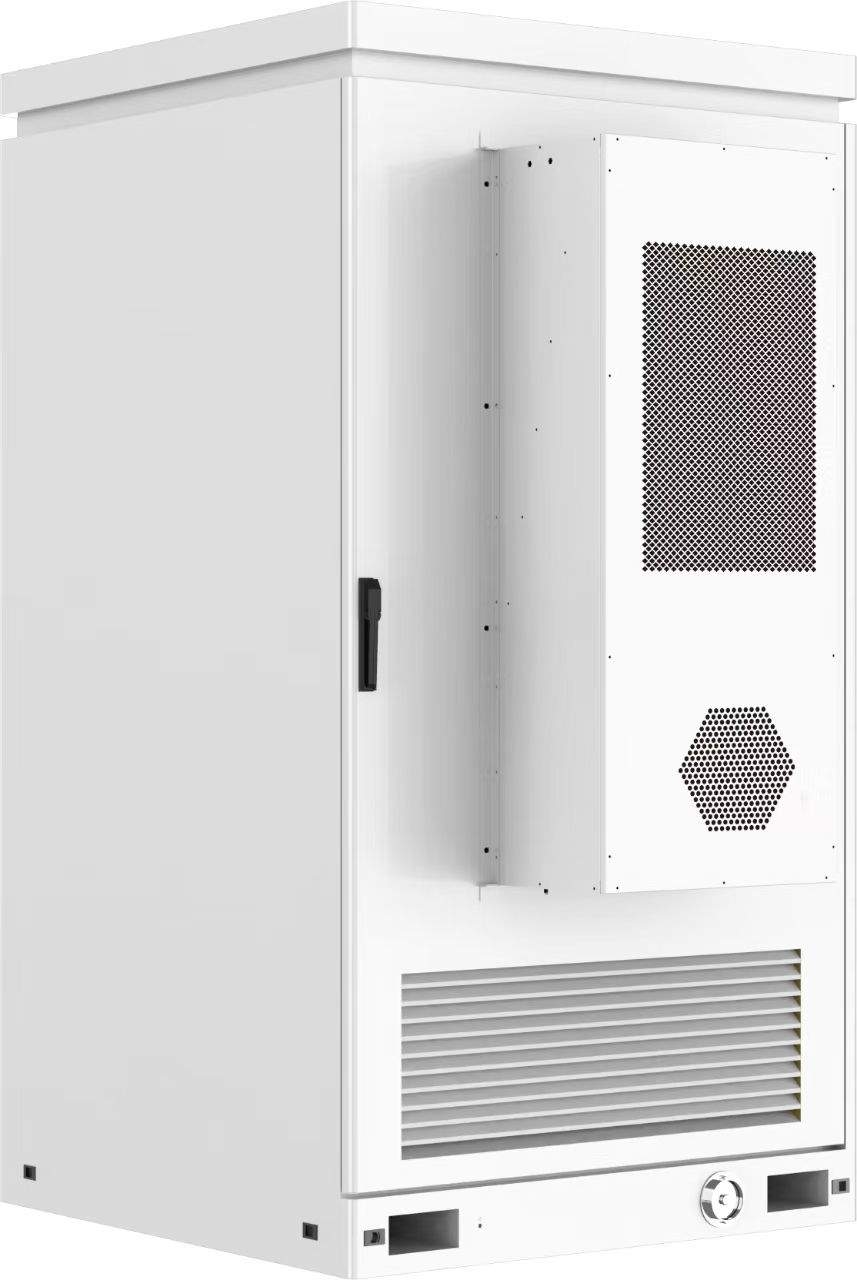

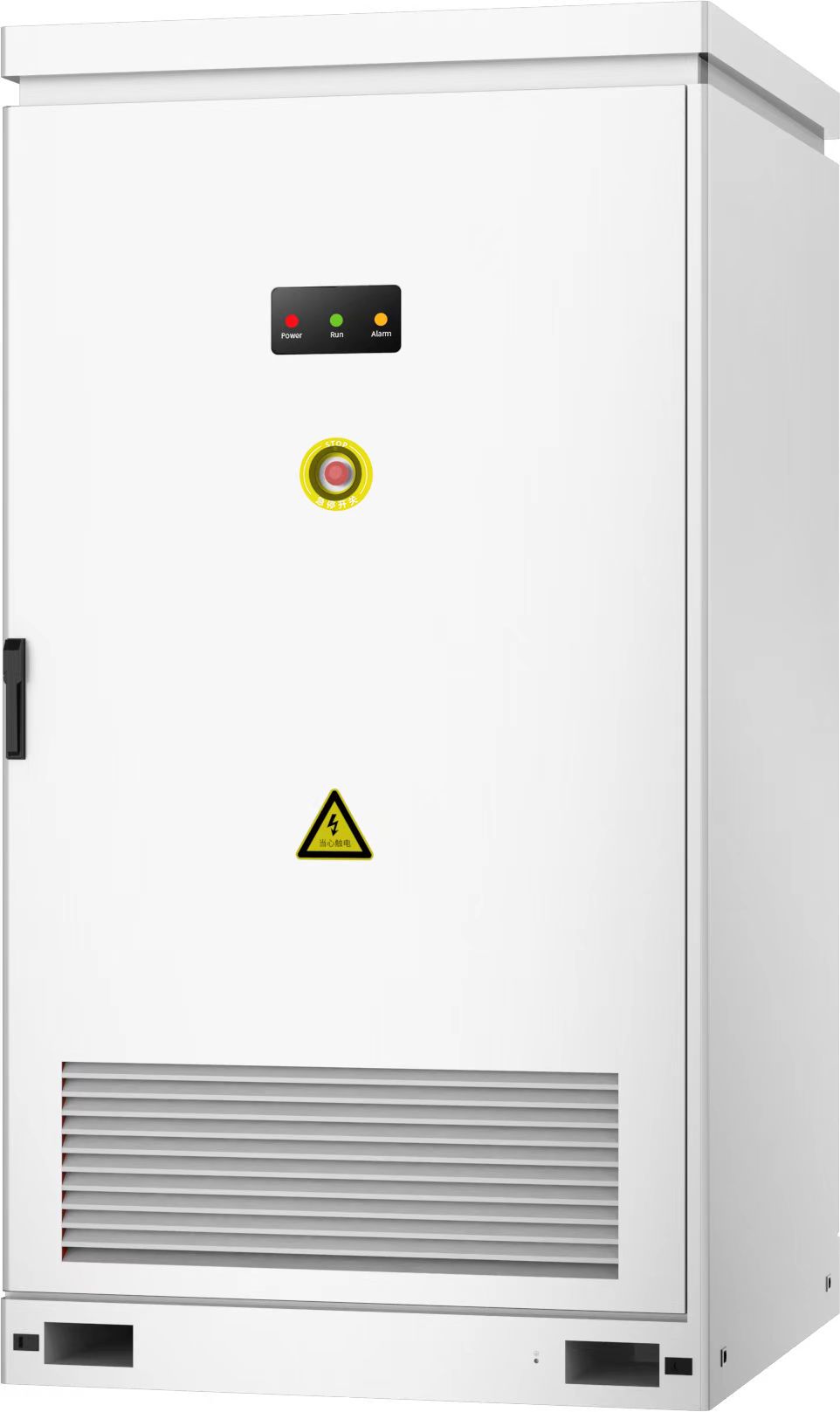

To provide users with a better energy storage experience, on the basis of highly integrated systems, optimize internal structural design, select high-quality battery cells, integrate battery management system, energy control system, AC/DC bidirectional converter, temperature control, and fire protection system into one.
It has the advantages of high efficiency, low noise, safety and reliability, and easy scalability. Its higher safety redundancy design enables it to meet the energy storage application needs of charging stations, commercial buildings, manufacturing and other usage scenarios.
1、Highly integrated, small footprint 2、Single cabinet occupying less than 2 square meters
1、High strength cabinet 2、Active safety protection system
1、Flexible expansion and on-demand configuration 2、Support parallel use of multiple devices
1、Cloud remote operation and maintenance, 7x24 real-time monitoring 2、Adaptive charging and discharging strategy to improve economic benefits
To provide users with a better energy storage experience, on the basis of highly integrated systems, optimize internal structural design, select high-quality battery cells, integrate battery management system, energy control system, AC/DC bidirectional converter, temperature control, and fire protection system into one.
It has the advantages of high efficiency, low noise, safety and reliability, and easy scalability. Its higher safety redundancy design enables it to meet the energy storage application needs of charging stations, commercial buildings, manufacturing and other usage scenarios.
1、Highly integrated, small footprint 2、Single cabinet occupying less than 2 square meters
1、High strength cabinet 2、Active safety protection system
1、Flexible expansion and on-demand configuration 2、Support parallel use of multiple devices
1、Cloud remote operation and maintenance, 7x24 real-time monitoring 2、Adaptive charging and discharging strategy to improve economic benefits
DC side parameters |
Battery Type: | Lithium Iron Phosphate | Operating voltage range: | 672V-864V |
Composition: | 1P240S | Cooling method: | Forced air cooling |
Rated capacity: | 280Ah | Number of cycles: | 6000 S |
Rated energy: | 215.04kWh | Fire Protection System: | Aerosol and water firefighting |
Rated voltage: | 768V | Detector Type: | Carbon monoxide, smoke sensing, temperature sensing, water immersion |
Rated power: | 105kW | Rated charge discharge rate: | 0.5P |
Communication side parameters |
Rated AC power: | 105kW105kW |
Rated voltage: | 230V/400V |
Grid frequency: | 50Hz/60Hz±2.5Hz |
Maximum output current: | 167A |
Power factor: | 0.99 |
System parameter |
Operating environment: | -20 ℃~50 ℃ (use for derating at temperatures greater than 45 ℃) |
Noise: | ≤75dB |
Dimensions (width * depth * height mm): | 1200*1553*2310 |
Weight: | ≈2.5t |
Waterproof grade: | IP54 |
Allow relative humidity: | 0-95% |
Allowable altitude: | ≤ 2000m (derating above 2000m) |
Communication interface: | CAN,Ethernet |
Communication protocol: | ModbusTCP/RTU |
System operation mode: | Peak shaving and valley filling, demand control, economic operation mode, reactive power regulation, grid dispatch interface, remote dispatch interface, local data storage, anti backflow function |
Certification standards: | GB/T36276-2023;IEC62619;UL1973;UL9540A |
