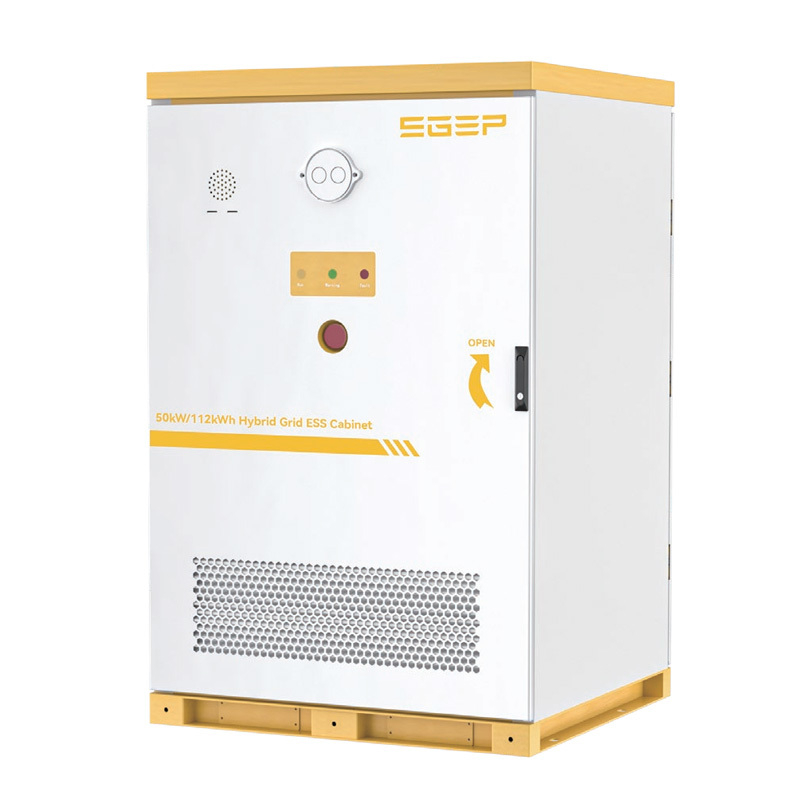

Shinegiant 50kW/112kWh Air cooled commercial energy storage cabinet

Name: Shinegiant 50kW/112kWh Air cooled commercial energy storage cabinet
Brand: ShineGiant
SKU: 128048286
Rating: 5.0 (20 reviews)

5 0 Reviews

To provide users with a better energy storage experience, on the basis of highly integrated systems, optimize internal structural design, select high-quality battery cells, integrate battery management system, energy control system, AC/DC bidirectional converter, temperature control, and fire protection system into one. It has the advantages of high efficiency, low noise, safety and reliability, and easy scalability. Its higher safety redundancy design enables it to meet the energy storage application needs of charging stations, commercial buildings, manufacturing and other usage scenarios.

Model:
50kW/112kWh
Brand:
ShineGiant

Color:	white
Size:	1090mm×1020mmX1700mm
Availability:

Quantity:



Inquire Add to Basket

Wind cooled industrial and commercial energy storage solution

To provide users with a better energy storage experience, on the basis of highly integrated systems, optimize internal structural design, select high-quality battery cells, integrate battery management system, energy control system, AC/DC bidirectional converter, temperature control, and fire protection system into one.

50KW_112kWh储能柜海报设计 (2)

It has the advantages of high efficiency, low noise, safety and reliability, and easy scalability. Its higher safety redundancy design enables it to meet the energy storage application needs of charging stations, commercial buildings, manufacturing and other usage scenarios.

50KW_112kWh储能柜海报设计 (1)

Product specifications and parameters

DC Battery Parameters

Cell Type：	LFP3.2V/314Ah
Cell Capacity：	314Ah
Battery Pack Rated Capacity：	112kWh
Battery Voltage Range：	336-404.8V
Recommended operating voltage range：	340V~400V
Battery pack configuration：	1P112S
Number of battery packs：	1P16S (7 slots)
Maximum charge/discharge current：	157A
Rated voltage：	width="279" >358.4V
Rated charge/discharge current：	0.5C
Cycle life：	>6000 Cycles
Battery terminal charge/discharge efficiency：	≥99%

AC Side Parameters (Built-in STS, Supports On-Grid/Off-Grid Switching)

Rated AC Power：	50kW
Maximum AC Power：	55kW(10s)
Rated AC Voltage：	380V 3/N/PE
Rated Frequency：	50Hz
Rated AC Current：	76A
Maximum AC Current：	83.6A
Power Factor：	≥0.99 (Adjustable Lead/Lag)
Grid-to-Off-Grid Switching Time：	≤10ms
Grid Voltage Adaptability Range：	width="267" >323V~437V
Grid Frequency Adaptation Range：	47.5Hz～52.5Hz
Rated Operating Condition THDi：	≤3%
Maximum PCS Efficiency：	≥98.5%

System parameter

Cooling Method：	Intelligent Air Cooling
Operating Temperature：	-25~+55℃
Storage Temperature：	30℃~+60℃
Operating Humidity：	5%~95%RH, Non-condensing
Depth of Discharge (DOD)：	≥90%
Application Altitude：	≤4000m
Noise Level：	≤75dB
System Round-Trip Efficiency：	≥92%
Protection Level：	IP54
System Dimensions (LxWxH)：	1090mm×1020mmX1700mm
Total Weight：	≤1800kg
Core Functions：	Peak arbitrage, peak shaving and valley filling, off-grid backup power, seamless switching between on-grid and off-grid, remote fault early warning

Small industrial energy storage systems Commercial & industrial (C&I) battery storage Small air cooled commercial energy storage cabinet BESS (Battery Energy Storage System) for factories Renewable energy integration for SMEs
